Application Scope

The CO₂ incubator is essential equipment for cell and bacterial culture, and a key device for research in immunology, oncology, genetics and bioengineering. It is widely used in the research and production of medicine, microbiology, agricultural science, pharmacology and other fields.

Product Features

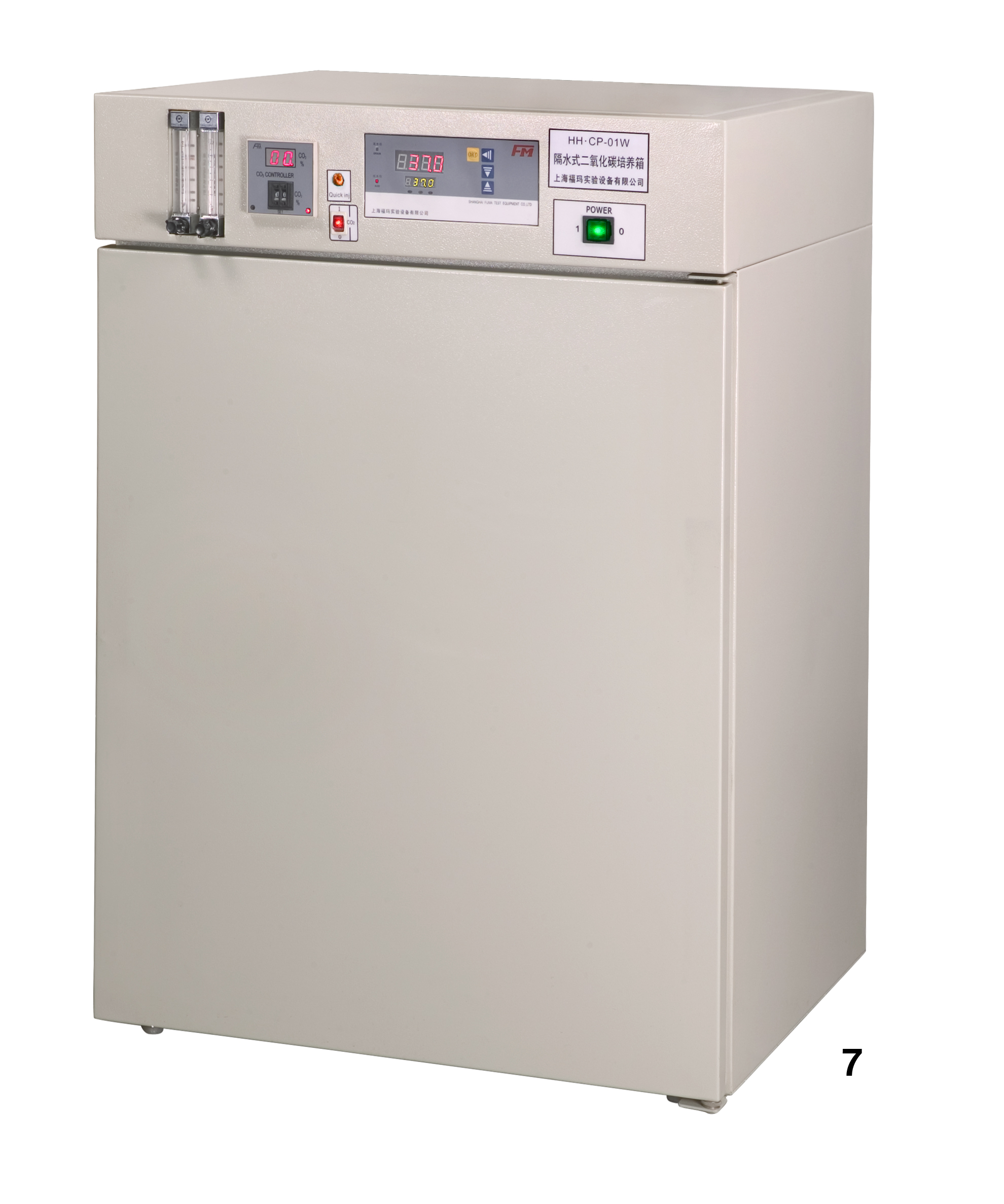

The new-generation HH.CP series air-jacketed CO₂ incubator is developed based on our years of manufacturing experience, combined with internationally advanced technologies and materials. It features fast heating and precise temperature control.
Adopted microcomputer temperature control with minor temperature fluctuation. Equipped with PID auto-tuning and four-digit dual LED display. It delivers excellent temperature control accuracy and strong anti-interference performance to meet diverse temperature control requirements.
The inner chamber is made of mirror-finish stainless steel for an elegant and neat appearance.
Four rounded corners of the inner chamber and freely adjustable shelves facilitate easy cleaning.
Double-door structure is applied. The inner door is high-quality finely ground tempered glass, enabling clear observation of the interior while maintaining stable internal temperature and CO₂ concentration.
A temperature control device is fitted on the inner glass door to effectively prevent condensation.
Digital tube display with constant temperature timing function, timing range: 1 - 999.9 hours.

Optional Accessories (Extra Charge Required)

① CO₂ pressure reducing valve ② RS485 interface ③ Printer ④ 30-segment time-sharing temperature controller

Technical Parameters

Item	Specification
Model	HH.CP-01 (160L)
Power Supply	220V, 50Hz
Heating Mode	Air-jacketed
Temperature Control Range	Ambient temperature +5℃ ~ 65℃
CO₂ Control Mode	Gas mixing type
Temperature Fluctuation	±0.3℃
Humidification Mode	Natural evaporation
CO₂ Control Range	0 - 20%
Temperature Recovery Time	≤ 15 minutes
CO₂ Concentration Recovery Time	≤ Concentration value × 1.2 minutes
Heating Power	600W
Inner Chamber Dimension	500×650×550 (mm)
Overall Dimension	650×1020×630 (mm)
Shelves (Standard / Maximum)	2 / 5 pcs
